PRODUCT

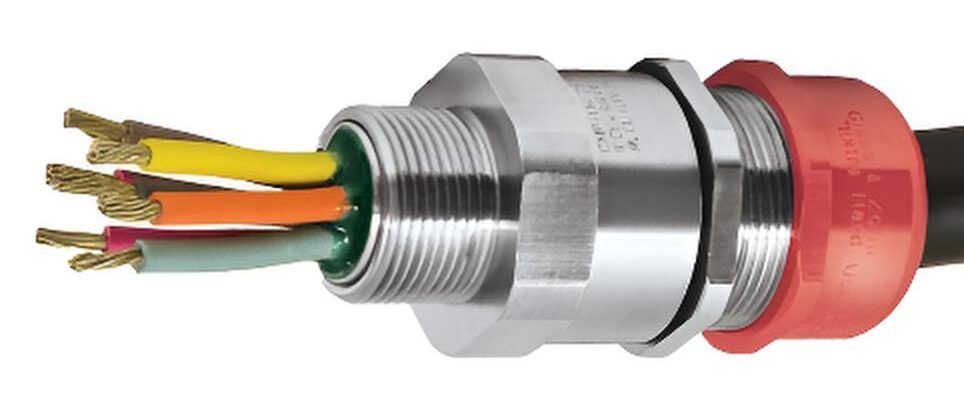

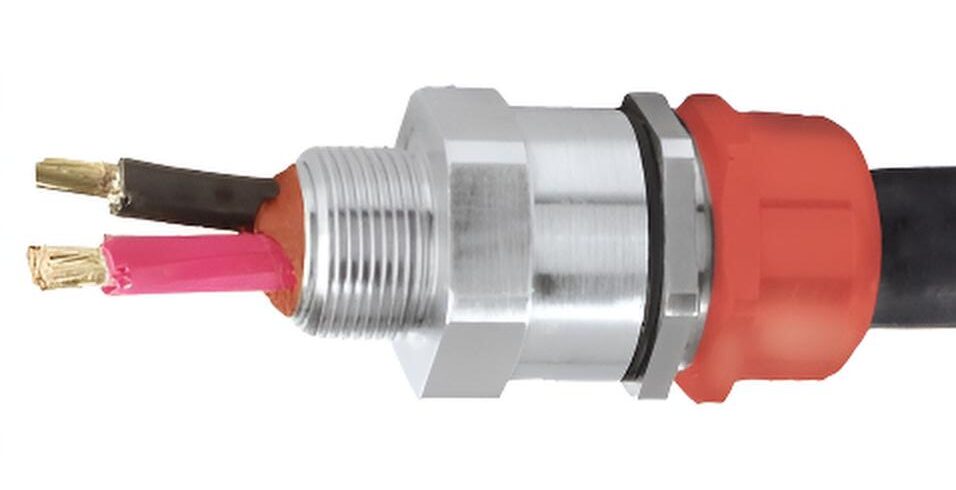

Compound(Barrier) Cable Gland
– PXSS2K 제품은 Double Seal 및 글로벌 인증, 방폭환경에 적합한 Barrier(배리어) Cable Gland 입니다. – 방폭인증 : IECEx, ATEX, UL & cCSAus, KCs etc. |
| Type of Cable Gland | PXSS2K, EXBF-A |
| Cable Type | All types of Unarmoured & Braided Armour Cables |
| Sealing Area | Inner Compound Barrier & Cable Outer Sheath |
| Material | Nickel Plated Brass, Stainless Steel 316, Brass |
| Ex grade | Ex d(내압), Ex e(안전증), Ex tb(분진 방폭) Class I, Div. 1, 2 Groups A, B, C and D Class II, Div. 1, 2 Groups E, F and G Class III, Div. 1, 2 Type 4X: Oil Resistant II Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb Class I, Zone 2 AEx nR IIC Gc Class I, Zone 20 AEx ta IIIC Da |
| Zone | 1, 2, 21, 22 |
| Ingress Protection | IP66, IP68(request in advance if IP68 required), 4X(NEC) |
| Certificate | ATEX, IECEx, KCs, UL, CSA, NRTL |

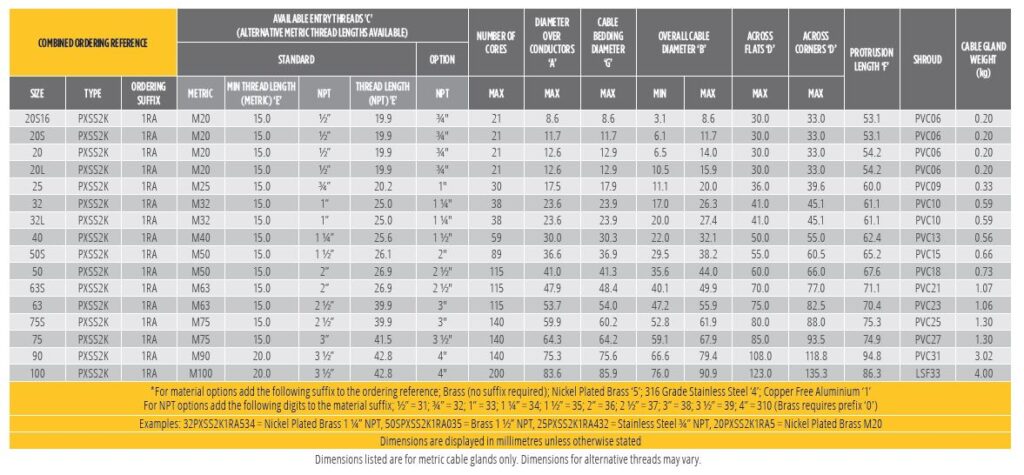

| Size | M20 ~ M100 NPT1/2″ ~ NPT3-1/2″ |
| Operating Temperature | -60˚C ~ 85˚C |
| Accessories | Sealing Washer, Locknut, Earth Tag, Serrated Washer, Shroud |
