| 주요 특징 및 장점 | |
|

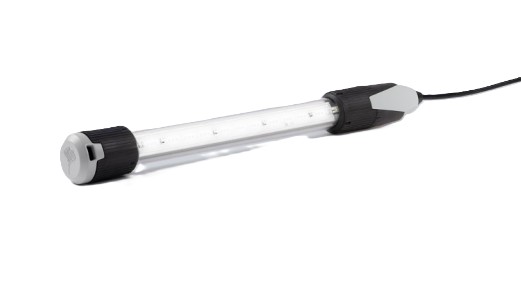

– 6036 Series Tubular LED Light Fitting은 혹독한 산업 환경과 방폭 지역에서도 안정적으로 사용할 수 있도록 설계된 고 신뢰성 조명 기구입니다. – Explosion-protected design(ATEX / IECEx certified) |
| 구분 (Category) | 내용 (Specification) |
| 모델명 (Model) | 6036 Series Tubular LED Light Fitting |
| 용도 (Application) | 일반 조명, 기계 내부, 협소 공간, 위험지역용 (Hazardous Area Lighting) |
| 방폭 등급 (Explosion Protection) | Ex db op is IIC T4 Gb (Gas) / Ex tb IIIC T100 °C Db (Dust) |
| 인증 (Certification) | ATEX, IECEx, DNV |
| 정격 전압 (Rated Voltage) | AC 100–277 V / DC 190–250 V |
| 주파수 (Frequency) | 50–60 Hz |
| 정격 광속 (Luminous Flux) | 1,510 – 6,040 lm (사이즈별 상이 / varies by size) |
| 색온도 (Color Temperature) | 4,000 K / 5,000 K (Option: Green 530 nm) |
| 연색성 (CRI) | ≥ 80 (Option ≥ 90) |
| 광배광 각도 (Beam Angle) | 약 140° (Around 140°, with diffused glass) |
| 소재 (Material) | Housing / Tube: Polycarbonate (폴리카보네이트) |
| 내충격 등급 (Impact Resistance) | IK11 (High durability) |
| 보호 등급 (Degree of Protection) | IP66 / IP67 / IP68 (10 m for 60 min) |
| 주위온도 범위 (Ambient Temperature) | –55 °C ~ +70 °C |
| 수명 (Service Life) | Up to 100,000 hours (유지보수 최소화) |
| 전기 보호등급 (Electrical Protection Class) | Class I or Class II (모델별 상이) |
| 전선 사양 (Cable Type) | H07RN8-F 2 × 1.5 mm² (기본 2.5 m, 옵션 가능) |
| 설치 방식 (Mounting Method) | Bracket or Clamp Mounting (브래킷 또는 클램프 설치) |
| 옵션 기능 (Optional Features) | DALI Control / Central Battery System Compatible |
| 크기 옵션 (Size Options) | Size 1 ~ 4 (광속 및 길이 별 선택) |
| 적용 환경 (Operating Environment) | Extreme cold, heat, humidity, dust, vibration 환경에 적합 |
| 비고 (Remarks) | Maintenance-free design / Robust & vibration-proof structure |
