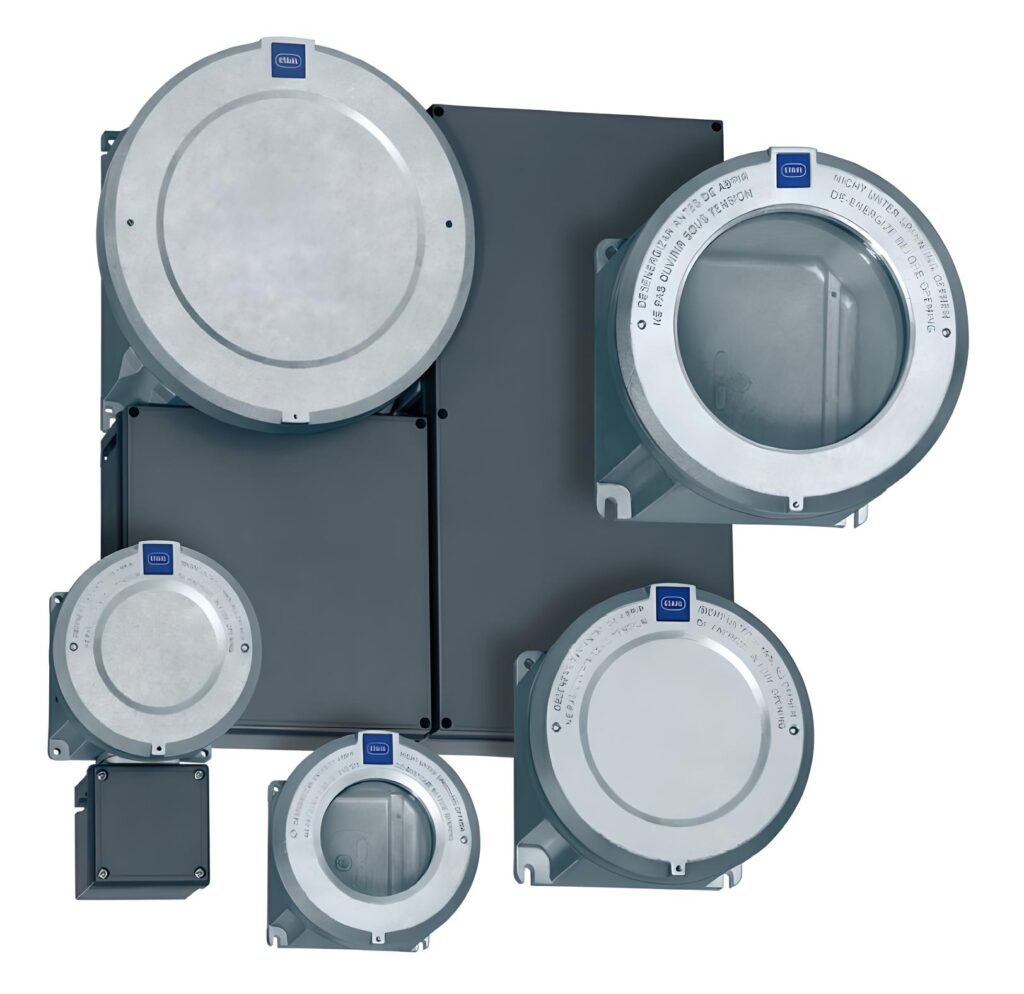

| Material | Aluminium, copper-free, Seawater-resistant |
| Ex grade | Ex db eb IIC Gb Ex tb IIIC Db |
| Zone | 1, 2, 21, 22 |
| Certificate | ATEX (PTB), Brazil (ULB), China (NEPSI), IECEx (PTB), Taiwan (ITRI) |
| Size | W, H : 125 ~ 335mm, D : 132 ~ 281mm |
| Rated operational voltage AC, Current | max. 1100 V (dependent on equipment installed) max. 630A |
| Ambient temperature | -50 °C … +60 °C |
| Degree of protection IP (IEC 60529) | IP54, IP66 with O-ring silicone -60 °C … +60 °C |
| External protective conductor connection | According to request |
| Cover Fixing | Bolting |
| Note | With window if required |
