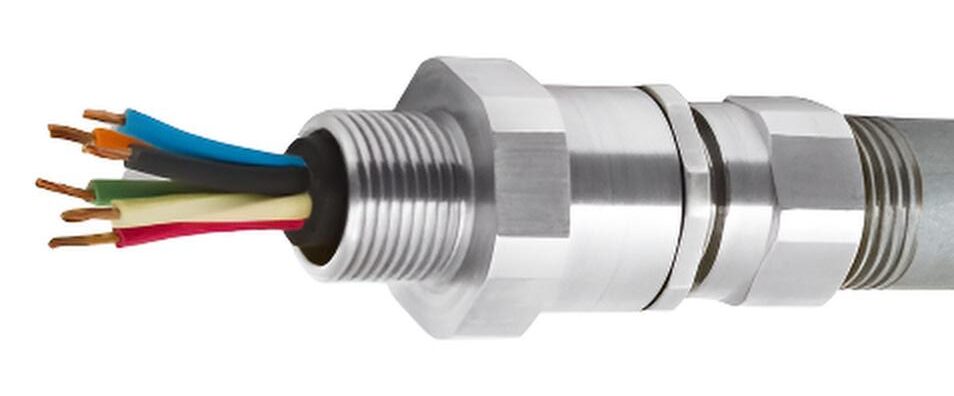

Conduit or Flexible Fitting Connection Cable Gland
| – A2FRC Cable Gland는 Armoured 또는 Braided Armoured Cable 용으로, Conduit(Pipe) 또는 Flexible conduit 체결용으로 사용됩니다. – 나사산 : Male(수나사) X Female(암나사) – Outdoor & Indoor 사용 – 높은 안전성 : 내압방폭(Ex d) 및 안전증 방폭(Ex e) 듀얼 인증 – 완벽한 밀폐 : IP66 등급 이상의 방진/방수 기능 – Single Compression – 쉬운 설치 : 별도 작업 없이 간편하고 빠르게 시공 가능 – Flexible Fitting 공급 가능 |

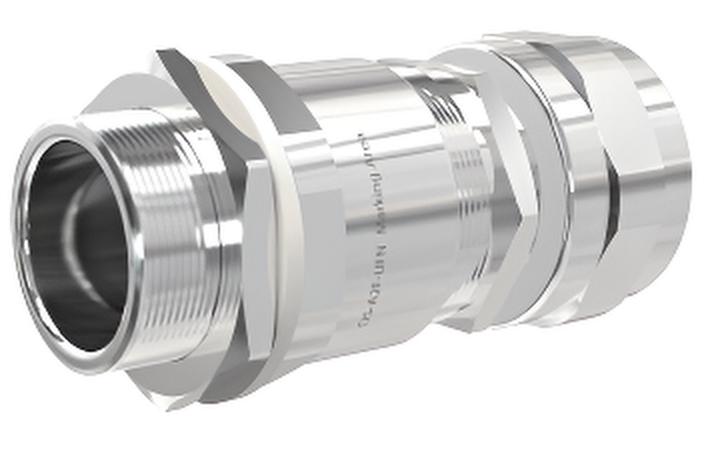

| Type of Cable Gland | A2FRC, A2F-UFN (Male X Female) |
| Cable Type | Non-armoured & Braided armoured cable |
| Sealing Area | Single Compression – Indoor and Outdoor for Conduit connection (or Flexible Fitting connection) |
| Material | Nickel Plated Brass, Stainless Steel 316, Brass |
| Ex grade | Ex d(내압), Ex e(안전증), Ex tb(분진 방폭) Cl. I, Div. 2, Gr. ABCD, Cl. II, Div 1, Gr. EFG; Cl. III, Div. 1 |
| Zone | 1, 2, 21, 22 |
| Ingress Protection | IP66, IP68(request in advance if IP68 required), 4X(NEC) |
| Certificate | ATEX, IECEx, KCs, UL, CSA, NRTL |
| Size | M16 ~ M115 NPT1/2″ ~ NPT4″ PF1/2″ ~ PF4″ |
| Operating Temperature | -60˚C ~ 110˚C |
| Accessories | Sealing Washer, Locknut, Earth Tag, Serrated Washer, Shroud |
